Stenorette 2300
Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Year
- 1980 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 124955
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

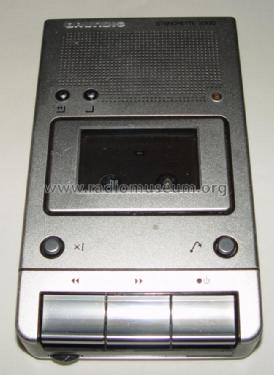

Stenorette 2300 Draufsicht

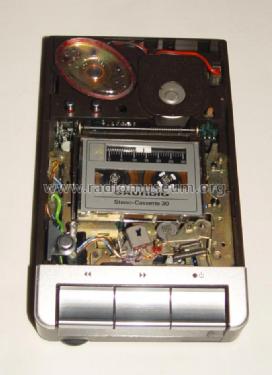

Stenorette 2300 Geraet offen Casettenschacht
Stenorette 2300 Rueckseite

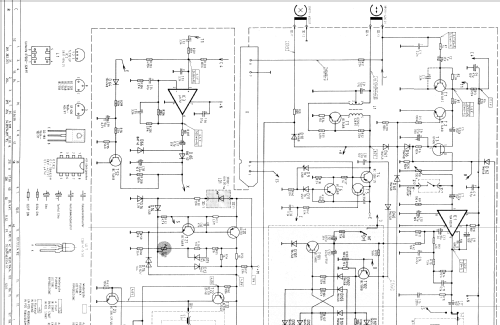

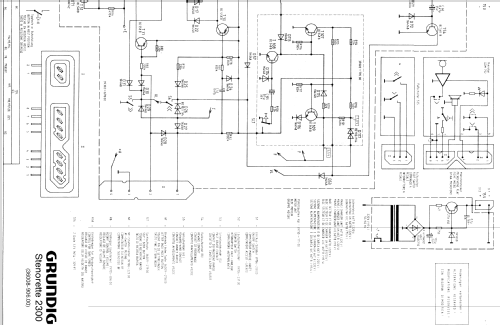

Service Anleitung
Stenorette 2300 Casettenschacht frei
Stenorette 2300 Anschluesse
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Powered by external power supply or a main unit. / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Stenorette 2300 - Grundig Radio-Vertrieb, RVF,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 110 x 40 x 175 mm / 4.3 x 1.6 x 6.9 inch
- Notes
-
Diktiergerät.
Externes Netzteil Type 667C
- Source of data
- -- Original prospect or advert
- Author
- Model page created by Martin Bösch. See "Data change" for further contributors.
