For model Stereo-Entzerrer-Vorverstärker MV3, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1966–1969 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 4: BC108 BC108 BC109 BC109
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit.
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Stereo-Entzerrer-Vorverstärker MV3 - Grundig Radio-Vertrieb, RVF,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 90 x 30 x 70 mm / 3.5 x 1.2 x 2.8 inch
Notes

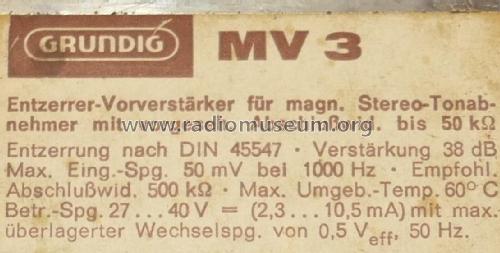

Grundig HiFi-Entzerrer-Vorverstärker Modell MV 3.
2-stufiger Verstärker für Magnet-Tonabnehmer nach DIN 45500.
Betriebsspannung 27-40 Volt
Frequenzbereich 30 - 16000 Hz +/-1dB
Klirrfaktor bei 1000Hz/1V < 0,1%


Net weight (2.2 lb = 1 kg) 0.2 kg / 0 lb 7 oz (0.441 lb)
Price in first year of sale 40.00 DM
External source of data erb
Source of data Handbuch VDRG 1966/1967

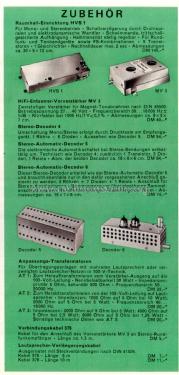

Mentioned in -- Original prospect or advert (Grundig Katalog 1967 - Schaufenster - Seite 22)
