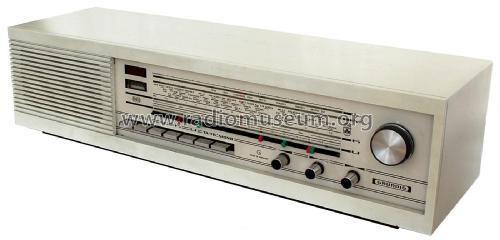

Stereo-Konzertgerät RF240 Ch= CS160 MS

Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

  • Year
  • 1969–1971
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 27597
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 21
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 7 AM circuit(s)     11 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 220 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Stereo-Konzertgerät RF240 Ch= CS160 MS - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 650 x 170 x 200 mm / 25.6 x 6.7 x 7.9 inch
  • Notes

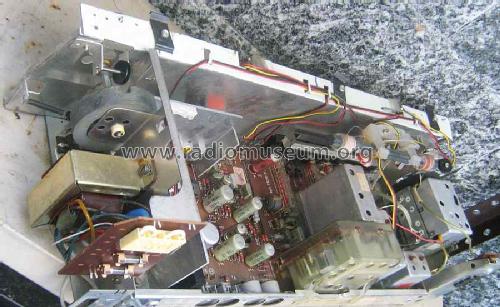

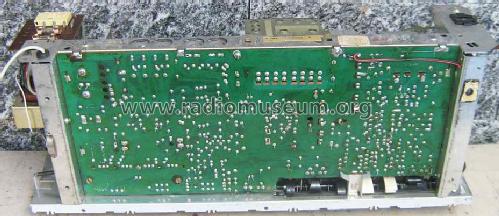

  • Das Grundig Stereo-Konzertgerät RF240 enthält das Einbauchassis 11, es entspricht dem Grundchassis CS160RF/MS.

    Stereo-Decoder 10 eingebaut; NF-Verstärker mit 2 Endstufen je 4 W.
    Gehäuse: Edelholz mitteldunkel poliert, hell mattiert oder Schleiflack weiss.

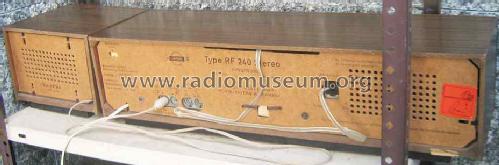

    Ein Lautsprecher intern, der andere ist als externe Box ausgeführt (RF240).

  • Net weight (2.2 lb = 1 kg)
  • 8 kg / 17 lb 9.9 oz (17.621 lb)
  • External source of data
  • erb
  • Mentioned in
  • Handbuch RFP 1970/71 S.134 (Thiele)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
