• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1963/1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 24723

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EAF801 ECC808 EM87 ECLL800 ECLL800

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 16 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

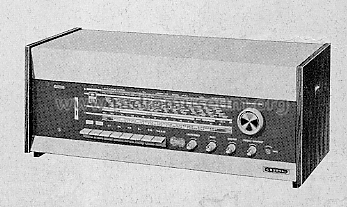

• Model: Stereomeister 10 [Nussbaum] - Grundig Radio-Vertrieb, RVF,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 580 x 230 x 220 mm / 22.8 x 9.1 x 8.7 inch

• Notes
• Dioden: 2× OA172, 2× OA150. Dreh- und schaltbare Ferritantenne; Stereo-NF-Verstärker mit 2 Gegentakt-Endstufen je 8 W. Stereo-Decoder 4 oder 5 nachrüstbar; Stereo-Anzeigeinstrument.

• Net weight (2.2 lb = 1 kg)
• 9.6 kg / 21 lb 2.3 oz (21.145 lb)

• Price in first year of sale
• 465.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1963/1964
