Stereomeister 15

Stereomeister 15; Grundig Radio- (ID = 35992) Radio

Stereomeister 15; Grundig Radio- (ID = 35993) Radio
Stereomeister 15; Grundig Radio- (ID = 25345) Radio Stereomeister 15; Grundig Radio- (ID = 25343) Radio
Stereomeister 15; Grundig Radio- (ID = 689326) Radio Stereomeister 15; Grundig Radio- (ID = 25344) Radio
Stereomeister 15; Grundig Radio- (ID = 35994) Radio Stereomeister 15; Grundig Radio- (ID = 455863) Radio

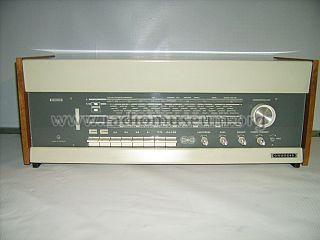

Stereomeister 15; Grundig Radio- (ID = 689324) Radio Stereomeister 15; Grundig Radio- (ID = 689328) Radio
Stereomeister 15; Grundig Radio- (ID = 1188008) Radio Stereomeister 15; Grundig Radio- (ID = 1317658) Radio
Use red slider bar for more.
Stereomeister 15; Grundig Radio- (ID = 25345) Radio
Grundig Radio-: Stereomeister 15 [Radio] ID = 25345 283x151
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereomeister 15, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1964/1965 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EAF801 ECC808 EM87 ECC808 ECLL800 ECLL800
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110, 130, 220, 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Stereomeister 15 - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 580 x 230 x 220 mm / 22.8 x 9.1 x 8.7 inch

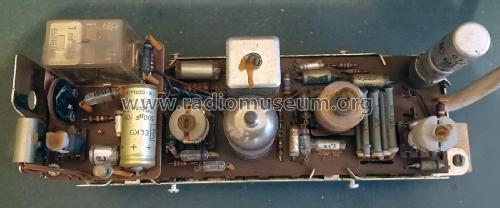

Notes Dreh- und abschaltbare Ferritantenne; Stereo-Decoder 5 (mit ECC81 und OC79) eingebaut; Stereo-NF-Verstärker mit 2 Gegentakt-Endstufen je 8 W.
Net weight (2.2 lb = 1 kg) 13 kg / 28 lb 10.1 oz (28.634 lb)
Price in first year of sale 680.00 DM
External source of data Erb
Source of data Handbuch VDRG 1964/1965
