• Year
  • 1984 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 133138
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

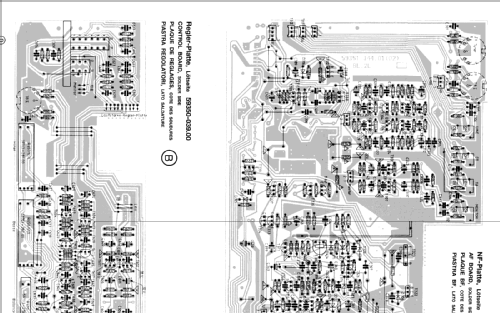

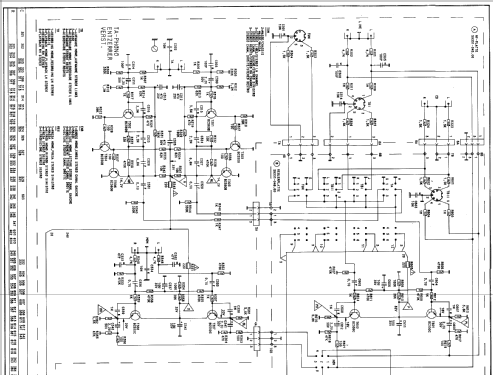

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 37
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Power out
  • 100 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org

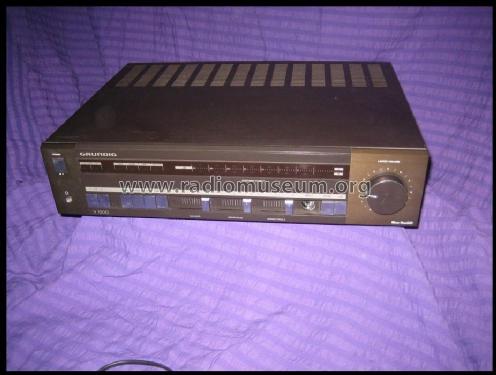

  • Model: Stereoverstärker V 7200 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 450 x 120 x 360 mm / 17.7 x 4.7 x 14.2 inch
  • Notes
  • 2 IC; Stereoverstärker V 7200 Musikleistung 2 x 50 Watt.
  • Net weight (2.2 lb = 1 kg)
  • 8 kg / 17 lb 9.9 oz (17.621 lb)
  • Mentioned in
  • Original Grundig Service Unterlagen
  • Author
  • Model page created by Josef Pilz. See "Data change" for further contributors.
