• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1966–1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 27069

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

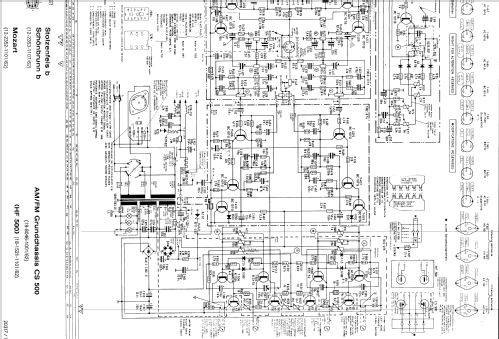

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 37

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 10 AM circuit(s)     16 FM circuit(s)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• 7 or more Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Stolzenfels b Ch= HF500/CS500 - Grundig Radio-Vertrieb, RVF,

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1810 x 890 x 470 mm / 71.3 x 35 x 18.5 inch

• Notes
• Rundfunk-Chassis = HF500; Vollstereo; NF-Verstärker mit 2 Endstufen je 15 W (Musik); 10 Lautsprecher;
  Phono-Chassis = Dual 1016 mit Magnetsystem Shure M44.

• Net weight (2.2 lb = 1 kg)
• 80 kg / 176 lb 3.4 oz (176.211 lb)

• External source of data
• erb

• Source of data
• Handbuch VDRG 1967/1968
