Studio Line BB-990
Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Year
- 1987 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 181487
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Dry Batteries / 1,5 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Studio Line BB-990 - Grundig Radio-Vertrieb, RVF,
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Notes

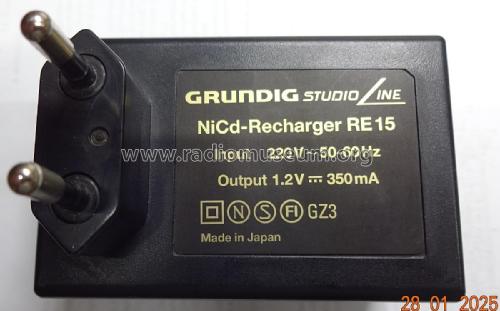

- Nur für Wiedergabe; Kopfhörer Anschluss 16 Ohm, und Anschluß für Externes Netzteil.
- Literature/Schematics (1)
- Original Grundig Service Unterlagen
- Author
- Model page created by Josef Pilz. See "Data change" for further contributors.
