• Year
  • 1975
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 211203
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

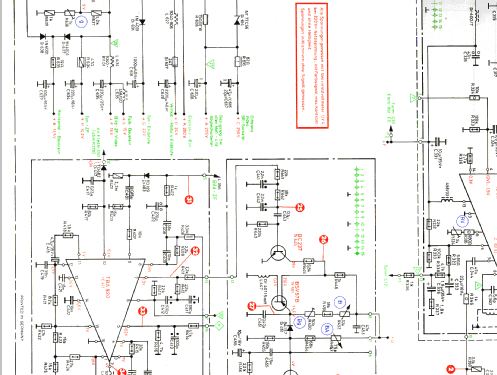

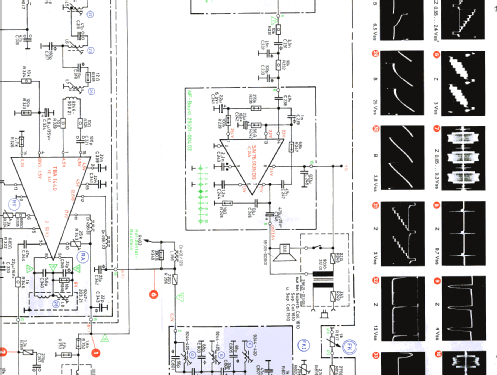

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Number of Transistors
  • Semiconductors present.
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Super Color 1610 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 480 x 350 x 410 mm / 18.9 x 13.8 x 16.1 inch
  • Notes

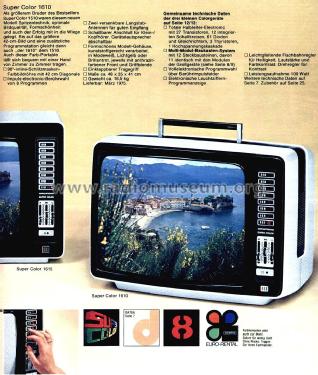

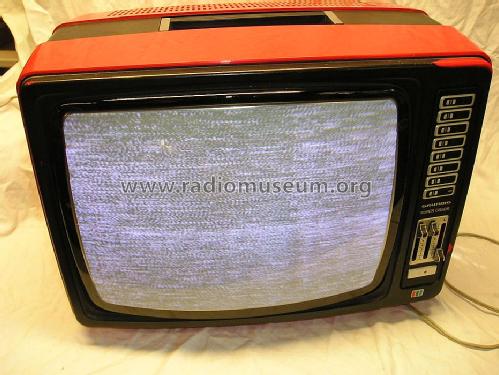

  • Grundig Super color 1610, 42cm Farb Portable.
    Impulse-Electronic-Berührwahl von 8 Programmen. Multi-Modul-Baukasten-System. Ausführung modeweiß, lichtgelb, brlliantrot jeweils mit anthraziter Front. Verkauf über die Weltfunk anläßlich der Funkausstellung 1975.
  • Net weight (2.2 lb = 1 kg)
  • 16.5 kg / 36 lb 5.5 oz (36.344 lb)
  • Source of data
  • -- Original-techn. papers.
  • Author
  • Model page created by Eckhard Wegner. See "Data change" for further contributors.
