• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1976 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 245280

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

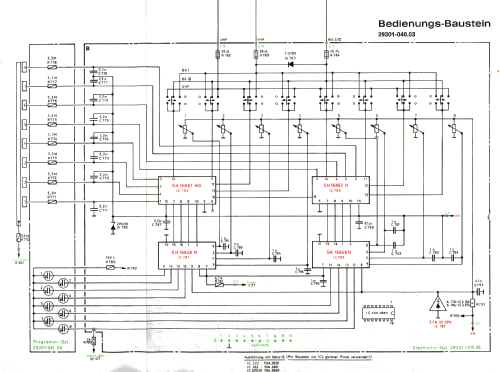

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 510JEB22

• Number of Transistors
• 29

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2.5 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

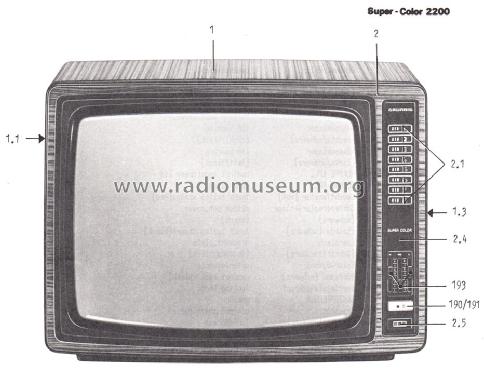

• Model: Super Color 2200 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 570 x 420 x 460 mm / 22.4 x 16.5 x 18.1 inch

• Notes

• VHF/UHF Allbereich Tuner.

• Source of data
• - - Manufacturers Literature

• Mentioned in
• Grundig Revue '76

• Literature/Schematics (1)
• -- Original-techn. papers. (Grundig Service Unterlagen)

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
