Super Color 2210
Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Year
- 1974
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 287636
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

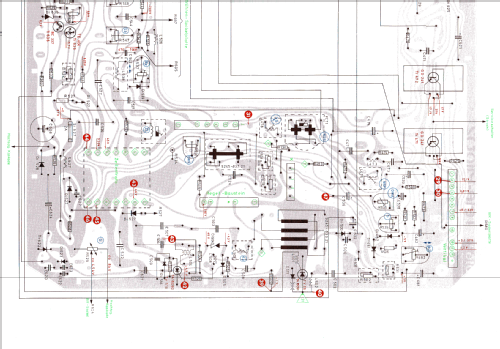

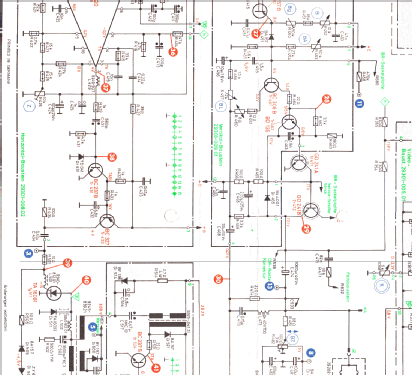

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Super Color 2210 - Grundig Radio-Vertrieb, RVF,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 700 x 460 x 430 mm / 27.6 x 18.1 x 16.9 inch
- Notes
-
56-cm-Bilddiagonale, 110°-inline-Schlitzmasken-Farbbildröhre, 8 Programme speicherbar, Sensor-Tasten für Programmwahl, Schieberegler für Helligkeit, Farbkontrast und Lautstärke.
Softline Gehäuse in nußbaumfarben oder in Schleiflack weiß
- Net weight (2.2 lb = 1 kg)
- 32 kg / 70 lb 7.8 oz (70.485 lb)
- Mentioned in
- -- Original prospect or advert (Grundig TI 5/1974)
- Author
- Model page created by Michael Mehnert. See "Data change" for further contributors.
