• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1981/1982

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 288845

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

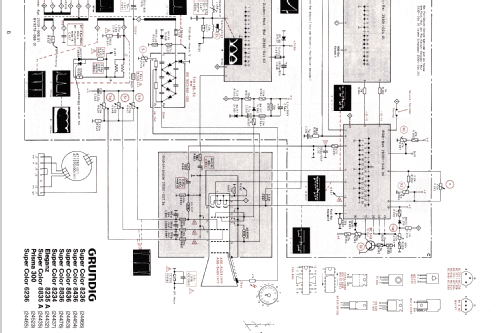

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• A66-540X

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Radio Control (+Remote Wire etc)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Super Color 8236 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 760 x 520 x 450 mm / 29.9 x 20.5 x 17.7 inch

• Notes

• Grundig Farbfernsehgerät Super Color 8236 mit Kabel Tuner und Suchlauf.
  66 cm Inline-Farbbildröhre.
  Fernbedienung Tele-Pilot 200 oder Tele-Pilot 350.

  2 Ausführungen:
  Braunmetallic mit Front silbermetallic;
  Braunmetallic mit Front moccabraun.

• Literature/Schematics (2)
• -- Original-techn. papers.

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
