Super Color C 3402/4 Ch=CUC 52

Grundig (Radio-Vertrieb, RVF, Radiowerke)

  • Year
  • 1982 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 287215
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

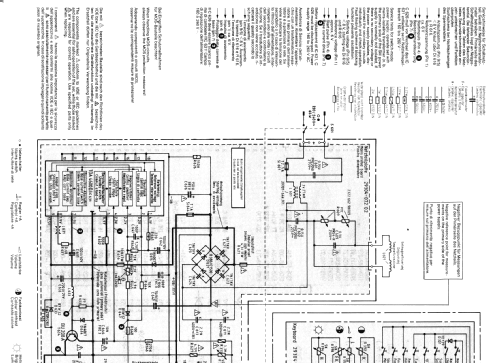

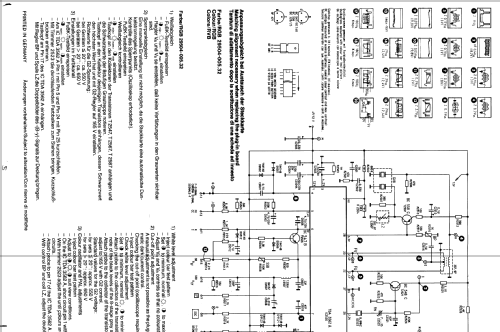

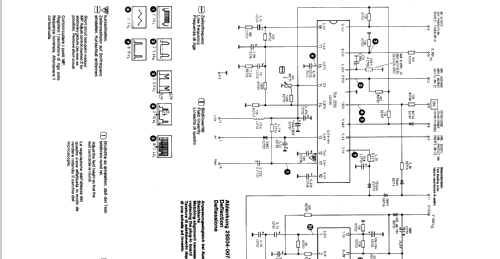

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Details
  • Radio Control (+Remote Wire etc)
  • Power type and voltage
  • Alternating Current supply (AC) / 220; 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Super Color C 3402/4 Ch=CUC 52 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Tablemodel, low profile (big size).
  • Notes
  • Grundig Super Color C 3402, Chassis CUC 52 Pal Farbfernsehempfänger mit elektronischem VHF/UHF Kabel Tuner nach CCIR; IR Fernbedienung Tele Pilot 380



  • Literature/Schematics (1)
  • Original Grundig Service Unterlagen
  • Author
  • Model page created by Josef Pilz. See "Data change" for further contributors.
