Super Color Stereo B 8700 Ch= CUC 730
Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Year
- 1982/1983
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 241757
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

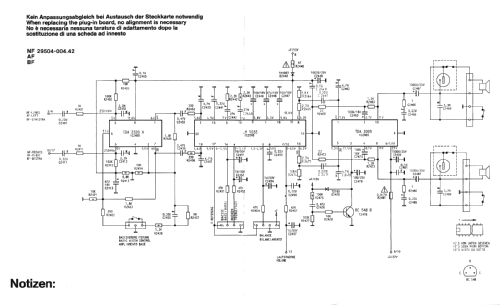

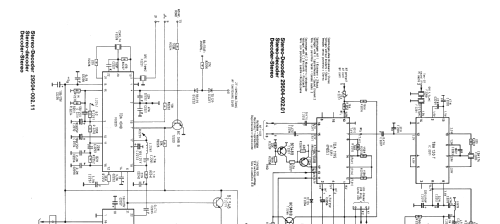

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- A66-540X
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Radio Control (+Remote Wire etc)
- Power type and voltage
- Alternating Current supply (AC) / 220- 240 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Super Color Stereo B 8700 Ch= CUC 730 - Grundig Radio-Vertrieb, RVF,
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 740 x 530 x 450 mm / 29.1 x 20.9 x 17.7 inch
- Notes
-
VHF/UHF Allbereich-Tuner.
- Price in first year of sale
- 15,990.00 ATS
- Mentioned in
- -- Original prospect or advert (Funkberater-Katalog-1982)
- Literature/Schematics (1)
- Grundig Service Unterlagen
- Author
- Model page created by Josef Pilz. See "Data change" for further contributors.
