Super HiFi - Micro-Box 320

Super HiFi - Micro-Box 320; Grundig Radio- (ID = 1796040) Speaker-P Super HiFi - Micro-Box 320; Grundig Radio- (ID = 1796041) Speaker-P
Super HiFi - Micro-Box 320; Grundig Radio- (ID = 1796042) Speaker-P Super HiFi - Micro-Box 320; Grundig Radio- (ID = 1796043) Speaker-P
Super HiFi - Micro-Box 320; Grundig Radio- (ID = 1796045) Speaker-P Super HiFi - Micro-Box 320; Grundig Radio- (ID = 2093196) Speaker-P
Use red slider bar for more.
Super HiFi - Micro-Box 320; Grundig Radio- (ID = 1796040) Speaker-P

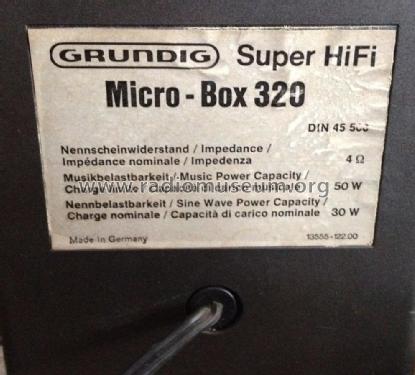

Grundig Radio-: Super HiFi - Micro-Box 320 [Speaker-P] ID = 1796040 893x1408
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super HiFi - Micro-Box 320, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Ebay auction by user 320buny 171591931534

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1981 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details Hi-Fi equipment
Power type and voltage No Power needed
Loudspeaker 2 Loudspeakers
Power out 30 W (50 W max.)
from Radiomuseum.org Model: Super HiFi - Micro-Box 320 - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 120 x 200 x 150 mm / 4.7 x 7.9 x 5.9 inch
Notes

Grundig 2-Way Speaker System Model Super HiFi - Micro-Box 320.
Impedance: 4 Ohm.
Power handling: 30/50 Watt
Frequency Response 50 - 25000Hz
Drivers:
1x Bass Cone Type
1x Tweeter
Crossover Frequency 2000Hz
Volume 2,25 litres
Finish:
walnut, metallic, brown
Made in Germany.

Net weight (2.2 lb = 1 kg) 2.1 kg / 4 lb 10 oz (4.626 lb)
Collectors' prices
Mentioned in -- Original prospect or advert (Grundig Lautsprecherprogramm 1981/82)

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke)
Here you find 5975 models, 5182 with images and 4025 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
