SV40M; Grundig Radio- (ID = 1205151) Ampl/Mixer
Grundig Radio-: SV40M [Ampl/Mixer] ID = 1205151 933x685
Select picture or schematic to display from thumbnails on the right and click for download.
For model SV40M, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1967–1969 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 25:
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: SV40M - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 410 x 150 x 280 mm / 16.1 x 5.9 x 11 inch

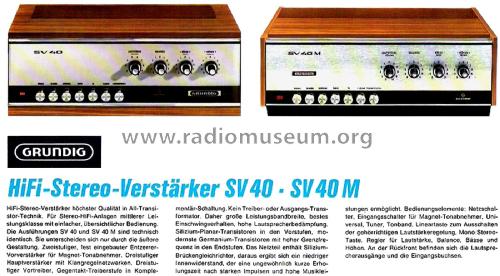

Notes HiFi-Stereo-Verstärker mit 2 Endstufen je 15 W (Sinus).
Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)
Price in first year of sale 10'950.00 BFr
External source of data erb
Source of data Handbuch VDRG 1967/1968
