SV80

SV80; Grundig Radio- (ID = 406024) Ampl/Mixer

SV80; Grundig Radio- (ID = 406025) Ampl/Mixer

SV80; Grundig Radio- (ID = 1764679) Ampl/Mixer

SV80; Grundig Radio- (ID = 1764680) Ampl/Mixer

SV80; Grundig Radio- (ID = 1764681) Ampl/Mixer

SV80; Grundig Radio- (ID = 1764682) Ampl/Mixer

SV80; Grundig Radio- (ID = 406027) Ampl/Mixer

SV80; Grundig Radio- (ID = 406028) Ampl/Mixer

SV80; Grundig Radio- (ID = 406029) Ampl/Mixer

SV80; Grundig Radio- (ID = 406030) Ampl/Mixer
SV80; Grundig Radio- (ID = 1764617) Ampl/Mixer SV80; Grundig Radio- (ID = 1764618) Ampl/Mixer
SV80; Grundig Radio- (ID = 397276) Ampl/Mixer SV80; Grundig Radio- (ID = 31047) Ampl/Mixer
SV80; Grundig Radio- (ID = 535193) Ampl/Mixer SV80; Grundig Radio- (ID = 2136249) Ampl/Mixer
Use red slider bar for more.
SV80; Grundig Radio- (ID = 1764617) Ampl/Mixer
Grundig Radio-: SV80 [Ampl/Mixer] ID = 1764617 1400x828
Select picture or schematic to display from thumbnails on the right and click for download.
For model SV80, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Grundig Werbung

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1965/1966 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 29:
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 60 W (undistorted)
from Radiomuseum.org Model: SV80 - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 390 x 150 x 270 mm / 15.4 x 5.9 x 10.6 inch
Notes Transistoren: 14× BSY76, 4× BSY51G, 2× BSY40, 8× 2N2148 or AD166, AD152; Dioden: 6× G580, 2× ZF2,7, DZ62.

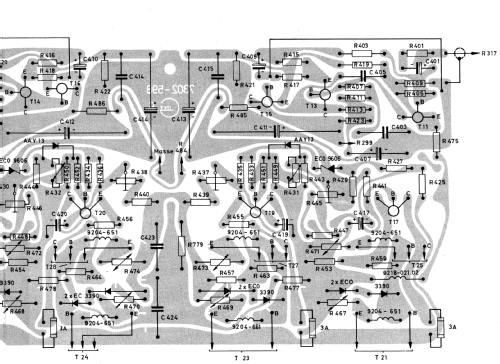

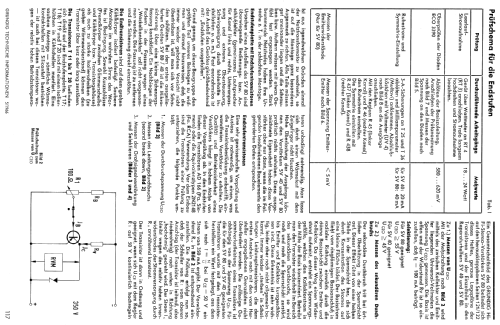

Stereo-NF-Verstärker mit 2 Gegentakt-Endstufen je 30 W. Der SV80 wurde ständig weiterentwickelt, da die Endstufen bei Überlastung schnell zerstört wurden. Die Diodenbestückung wurde oft geändert. Siehe geladenen Schaltplan aus Grundig TI Dez.1965 und Variante 1966
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Collectors' prices
External source of data erb
Source of data Handbuch VDRG 1965/1966
Mentioned in -- Original prospect or advert (Grundig Katalog 1967 - Schaufenster - Seite 21)
Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke)
Here you find 5980 models, 5188 with images and 4030 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
