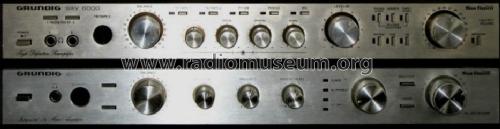

SXV6000; Grundig Radio- (ID = 500188) Ampl/Mixer SXV6000; Grundig Radio- (ID = 500312) Ampl/Mixer
SXV6000; Grundig Radio- (ID = 1527126) Ampl/Mixer SXV6000; Grundig Radio- (ID = 1527127) Ampl/Mixer
SXV6000; Grundig Radio- (ID = 1527128) Ampl/Mixer SXV6000; Grundig Radio- (ID = 1977271) Ampl/Mixer
SXV6000; Grundig Radio- (ID = 1977272) Ampl/Mixer SXV6000; Grundig Radio- (ID = 1977329) Ampl/Mixer
SXV6000; Grundig Radio- (ID = 1977330) Ampl/Mixer SXV6000; Grundig Radio- (ID = 1977331) Ampl/Mixer
Use red slider bar for more.
SXV6000; Grundig Radio- (ID = 500188) Ampl/Mixer
Grundig Radio-: SXV6000 [Ampl/Mixer] ID = 500188 933x523
Select picture or schematic to display from thumbnails on the right and click for download.
For model SXV6000, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Original prospekt. Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1981/1982 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: SXV6000 - Grundig Radio-Vertrieb, RVF,
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 450 x 60 x 350 mm / 17.7 x 2.4 x 13.8 inch
Notes

Vorverstärker in ClassA Technik mit 2 schaltbaren Ausgängen zur Ansteuerung von Aktiv Boxen oder Endstufen. Ausgang 1: Nominal 1 Volt regelbar bis 12V max. Ausgang 2: fest 1 Volt. Ausgangsimpedanz < 500 Ohm

400 Hz Pegeltongenerator zum Einpegeln von Tonbandgeräten, Endverstärkern und Aktiv Boxen.

Ausführungen: Metallfinish und Braun.



Collectors' prices
Mentioned in Grundig Fachhandelskatalog 81/82

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
