Tele-Pilot 12 29622-010.01 /.02/.20; Grundig Radio- (ID = 744948) Misc
Grundig Radio-: Tele-Pilot 12 29622-010.01 /.02/.20 [Misc] ID = 744948 496x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tele-Pilot 12 29622-010.01 /.02/.20, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1973–1976 Category: Miscellaneous (Other, Various) - see notes
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details Radio Control (+Remote Wire etc)
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Tele-Pilot 12 29622-010.01 /.02/.20 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Dimensions (WHD) 70 x 32 x 117 mm / 2.8 x 1.3 x 4.6 inch

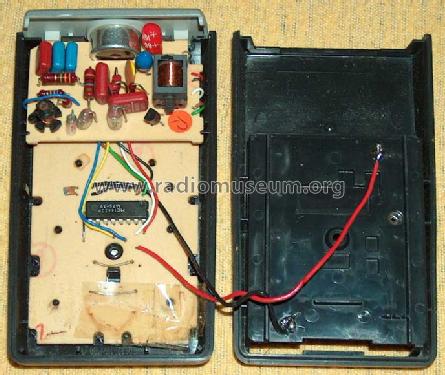

Notes 2 Schaltungsvarianten: 29622-010.01 mit 9 Transistoren + IC SN7473 AM, 4 × 1,5V Batterien oder 29622-010.02 oder .20 mit 1 Transistor BC338-16 + IC MC14422, 5 × 1,5V Batterien Ultraschall-Fernsehfernbedienung für 20 Funktionen, davon 12 Programmtasten.
Net weight (2.2 lb = 1 kg) 0.250 kg / 0 lb 8.8 oz (0.551 lb)
Collectors' prices
Mentioned in - - Manufacturers Literature (Grundig Technisches Jahrbuch 1991)

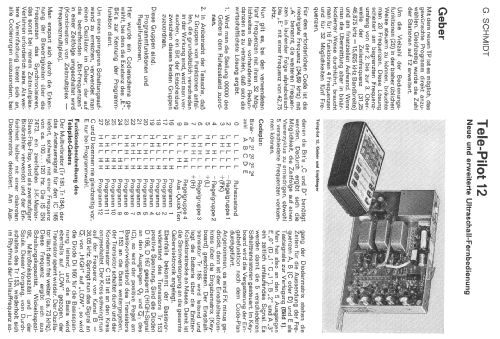

Literature/Schematics (1) -- Original-techn. papers. (Grundig Technische Informationen 4/1973)

Model page created by a member from A. See "Data change" for further contributors.
