• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1965/1966

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 164542

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

• Number of Transistors
• 7

• Semiconductors
• BC107 AC126 AC126 AC128 AD148 ASY26 ASY26

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Other Recorder/Player

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.09 W (unknown quality)

• from Radiomuseum.org
• Model: Teleboy 100 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 280 x 75 x 250 mm / 11 x 3 x 9.8 inch

• Notes

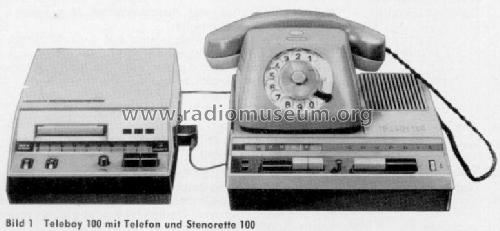

• Grundig Teleboy 100;
  Telefonanrufbeantworter mit nur Ansagetext, 6 pol. Normbuchse, Tonwalzen, Nachrichtenaufzeichnung in Verbindung mit Grundig Stenorette 100 möglich.

• Net weight (2.2 lb = 1 kg)
• 4.5 kg / 9 lb 14.6 oz (9.912 lb)

• Mentioned in
• - - Manufacturers Literature ((D) Grundig Technische Informationen Dezember 1965 - Gerätevorstellung)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
