• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1970–1973

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 28124

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

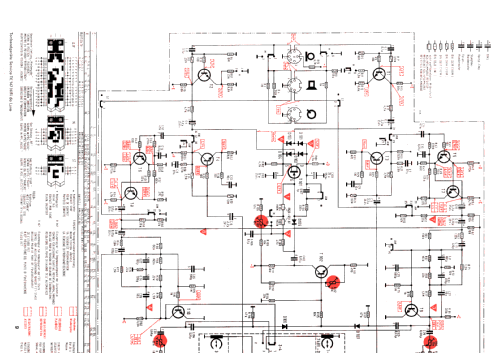

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 18

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 120; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: TK147U HiFi de Luxe - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 390 x 160 x 290 mm / 15.4 x 6.3 x 11.4 inch

• Notes
• Unterschied zum TK147 HI-Fi de Luxe: 3 Spannungsbereiche: 110, 120, 240 Volt.

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• External source of data
• Erb

• Literature/Schematics (1)
• -- Original-techn. papers.
