TK149

TK149; Grundig Radio- (ID = 105293) R-Player

TK149; Grundig Radio- (ID = 105294) R-Player

TK149; Grundig Radio- (ID = 2108269) R-Player
TK149; Grundig Radio- (ID = 2375010) R-Player TK149; Grundig Radio- (ID = 182420) R-Player
TK149; Grundig Radio- (ID = 421074) R-Player TK149; Grundig Radio- (ID = 421075) R-Player
TK149; Grundig Radio- (ID = 421076) R-Player TK149; Grundig Radio- (ID = 421077) R-Player
Use red slider bar for more.
TK149; Grundig Radio- (ID = 2375010) R-Player
Grundig Radio-: TK149 [R-Player] ID = 2375010 1400x1049
Select picture or schematic to display from thumbnails on the right and click for download.
For model TK149, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1969 ? Category: Sound/Video Recorder and/or Player
Valves / Tubes 4: EF86 EF83 ECC81 ECL86
Semiconductors (the count is only for transistors) 1: BC107
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 4 W (unknown quality)
from Radiomuseum.org Model: TK149 - Grundig Radio-Vertrieb, RVF,
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 380 x 285 x 165 mm / 15 x 11.2 x 6.5 inch
Notes Vierspur-Mono; 9,5 cm/s; Spulen-Ø: 15 cm.
Eisenblechgehäuse mit Folie beklebt.
Net weight (2.2 lb = 1 kg) 8.9 kg / 19 lb 9.7 oz (19.604 lb)

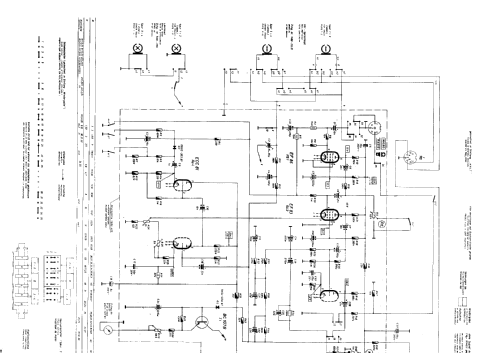

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
