- Country
- Great Britain (UK)
- Manufacturer / Brand
- Grundig Ltd., London
- Year
- 1960 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 105791

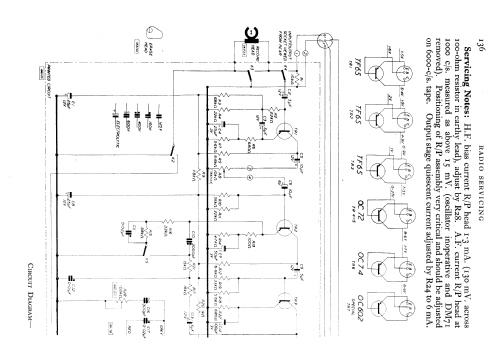

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- DM71
- Number of Transistors
- 7
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Dry Batteries / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

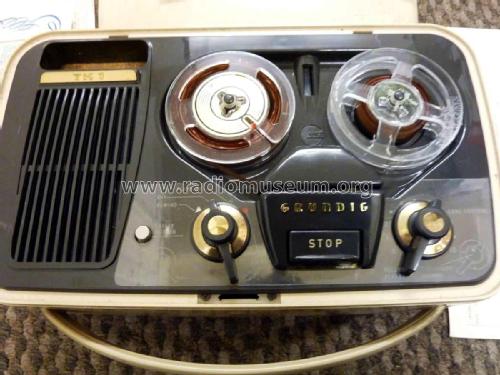

- Model: TK1 - Grundig Ltd., London
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 300 x 115 x 175 mm / 11.8 x 4.5 x 6.9 inch
- Notes
- Battery tape recorder transistorised except fot level indicator. Single speed 3.75 ips.
- Net weight (2.2 lb = 1 kg)
- 2 kg / 4 lb 6.5 oz (4.405 lb)
- Circuit diagram reference
- Radio and TV Servicing books (R&TVS) book
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
