TK4; Grundig Radio- (ID = 54401) R-Player
Grundig Radio-: TK4 [R-Player] ID = 54401 933x699

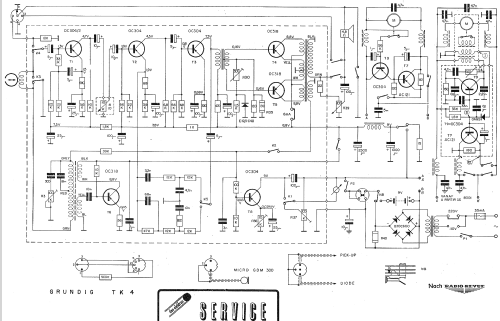

Select picture or schematic to display from thumbnails on the right and click for download.
For model TK4, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1963–1965 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 8: OC306 OC304 OC304 OC304 OC318 OC318 OC318 OC318
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Line / Batteries (any type) / 110; 220 / 6× 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.6 W (unknown quality)
from Radiomuseum.org Model: TK4 - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 347 x 105 x 225 mm / 13.7 x 4.1 x 8.9 inch
Notes Zweispur; Bandgeschwindigkeit: 9,5 cm/s.; Spulen-Ø 11 cm.
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Price in first year of sale 348.00 DM
External source of data Erb

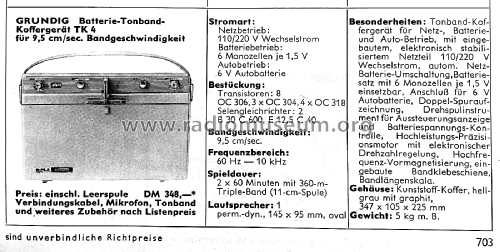

Source of data Handbuch VDRG 1963/1964
