• Year
  • 1965 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 174926
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Tape Recorder
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 220; 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Various materials
  • from Radiomuseum.org

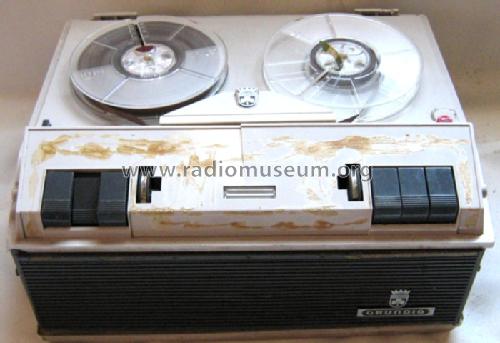

  • Model: TK 19 SK de luxe k - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 340 x 175 x 270 mm / 13.4 x 6.9 x 10.6 inch
  • Notes

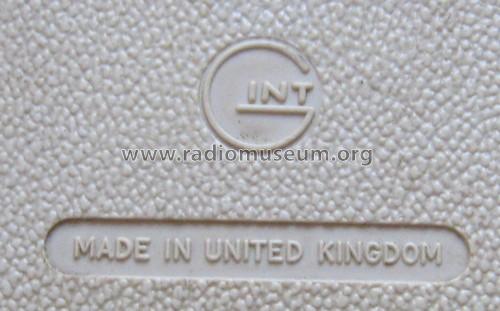

  • Mono Zweispur, 9,5 cm/s. Spulen Ø 15 cm. Deutsches Modell in England produziert (siehe Typenschild).
  • Net weight (2.2 lb = 1 kg)
  • 10 kg / 22 lb 0.4 oz (22.026 lb)
  • Source of data
  • - - Data from my own collection
  • Author
  • Model page created by Jouko Laukkanen. See "Data change" for further contributors.
