Top-Boy 600L

Top-Boy 600L; Grundig Radio- (ID = 1324529) Radio
Use red slider bar for more.
Top-Boy 600L; Grundig Radio- (ID = 1324529) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1974 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: BF314 BF241 BF241 BF241 BF240 BC308 BC238 AC121 AC187 AC188 AA112 AA112 AA112 BZ102
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz; 5 AF stage(s)
Tuned circuits 5 AM circuit(s)     7 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details

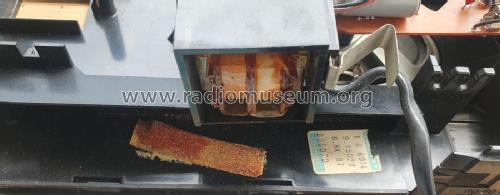

Power type and voltage Line / Batteries (any type) / 110-220; 4 × 1,5 Volt

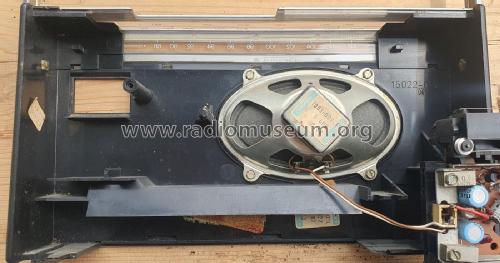

Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Top-Boy 600L - Grundig Radio-Vertrieb, RVF,
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 260 x 180 x 50 mm / 10.2 x 7.1 x 2 inch
Notes

UKW: 87,5 - 108 MHz
MW: 510 - 1620 kHz
LW: 145 - 260 kHz

Siehe auch Grundig Top Boy 600K mit KW statt LW.

Source of data -- Original-techn. papers.

Model page created by Mark Hippenstiel. See "Data change" for further contributors.
