Transistor 11a / 14-1233-32
Use red slider bar for more.
Grundig Radio-: Transistor 11a / 14-1233-32 [Radio] ID = 1885523 752x527
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
Grundig Portugal || Grundig USA / Lextronix | ||||
|---|---|---|---|---|---|
| Year: 1962 ? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 14: |
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast, Long Wave, Short Wave plus FM or UHF. |
| Details | |

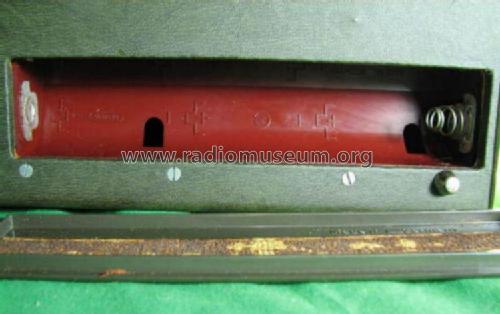

| Power type and voltage | Line / Batteries (any type) / 110; 220 / D: 6 × 1,5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical |
| Power out | 1.2 W (unknown quality) |
| from Radiomuseum.org | Model: Transistor 11a / 14-1233-32 - Grundig Radio-Vertrieb, RVF, |
| Material | Leather / canvas / plastic - over other material |
| Shape | Portable set > 8 inch (also usable without mains) |
| Dimensions (WHD) | 325 x 225 x 115 mm / 12.8 x 8.9 x 4.5 inch |
| Net weight (2.2 lb = 1 kg) | 5 kg / 11 lb 0.2 oz (11.013 lb) |
Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
