Transistor 200

Transistor 200; Grundig Radio- (ID = 480104) Radio

Transistor 200; Grundig Radio- (ID = 480108) Radio

Transistor 200; Grundig Radio- (ID = 480105) Radio

Transistor 200; Grundig Radio- (ID = 480109) Radio

Transistor 200; Grundig Radio- (ID = 480110) Radio

Transistor 200; Grundig Radio- (ID = 480111) Radio
Use red slider bar for more.
Transistor 200; Grundig Radio- (ID = 480104) Radio

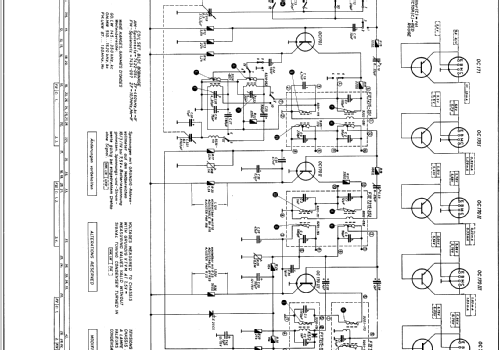

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1960/1961 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: OC171 OC170 OC170 OC170 OC71 OC71 OC74 OC74
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 2 x 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Transistor 200 - Grundig Radio-Vertrieb, RVF,
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)

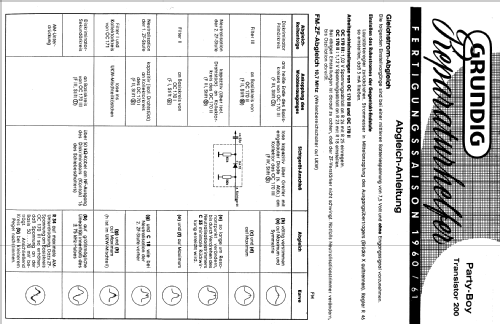

Mentioned in Original Grundig Service Unterlagen

Model page created by Josef Pilz. See "Data change" for further contributors.
