Transistor-Box 202

Transistor-Box 202; Grundig Radio- (ID = 344136) Radio

Transistor-Box 202; Grundig Radio- (ID = 344137) Radio

Transistor-Box 202; Grundig Radio- (ID = 344138) Radio

Transistor-Box 202; Grundig Radio- (ID = 344140) Radio
Transistor-Box 202; Grundig Radio- (ID = 1323157) Radio Transistor-Box 202; Grundig Radio- (ID = 1323158) Radio
Transistor-Box 202; Grundig Radio- (ID = 819420) Radio Transistor-Box 202; Grundig Radio- (ID = 819419) Radio
Transistor-Box 202; Grundig Radio- (ID = 819421) Radio Transistor-Box 202; Grundig Radio- (ID = 819422) Radio
Transistor-Box 202; Grundig Radio- (ID = 1098002) Radio Transistor-Box 202; Grundig Radio- (ID = 1098003) Radio
Transistor-Box 202; Grundig Radio- (ID = 73362) Radio
Use red slider bar for more.
Transistor-Box 202; Grundig Radio- (ID = 1323157) Radio
Grundig Radio-: Transistor-Box 202 [Radio] ID = 1323157 1400x1120
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transistor-Box 202, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1962–1964 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 5: AF127 AF127 2SB56 2SB56 2SB56 1N60 1N60
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.3 W (unknown quality)
from Radiomuseum.org Model: Transistor-Box 202 - Grundig Radio-Vertrieb, RVF,
Material Leather / canvas / plastic - over other material
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 200 x 130 x 60 mm / 7.9 x 5.1 x 2.4 inch
Notes   Das Gehäuse ist aus Holz-Pressspan, überzogen mit Kunststofffolie. Lediglich die Frontseite (Lautsprechergitter) ist aus Thermoplast.
Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)
Price in first year of sale 118.00 DM
Source of data Handbuch VDRG 1962/1963 / Radiokatalog Band 1, Ernst Erb
Mentioned in Handbuch VDRG 1963/1964
Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke)
Here you find 6064 models, 5290 with images and 4093 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Grundig Radio-: Transistor-Box 202
Threads: 1 | Posts: 1
Hits: 2187     Replies: 0
grundig: 202; Transistor-Box
Peter von Bechen † 15.7.19
12.Sep.10
  1

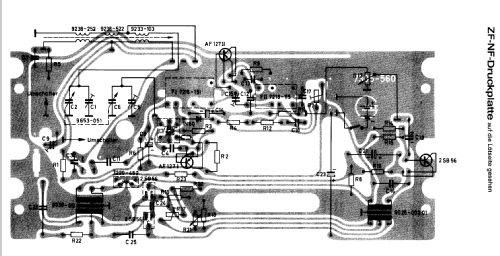

In den Serviceunterlagen sind Fehler im Bild des PLatinenlayouts. In rot die Korrekturen.
