Transistor-Boy L

Transistor-Boy L; Grundig Radio- (ID = 33080) Radio

Transistor-Boy L; Grundig Radio- (ID = 12529) Radio

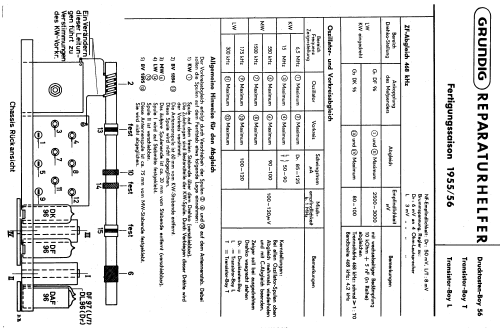

Transistor-Boy L; Grundig Radio- (ID = 32817) Radio

Transistor-Boy L; Grundig Radio- (ID = 2085372) Radio
Transistor-Boy L; Grundig Radio- (ID = 541161) Radio Transistor-Boy L; Grundig Radio- (ID = 541162) Radio
Transistor-Boy L; Grundig Radio- (ID = 27141) Radio Transistor-Boy L; Grundig Radio- (ID = 385135) Radio
Transistor-Boy L; Grundig Radio- (ID = 385136) Radio
Use red slider bar for more.
Transistor-Boy L; Grundig Radio- (ID = 541161) Radio
Grundig Radio-: Transistor-Boy L [Radio] ID = 541161 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transistor-Boy L, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DK96 DF96 DAF96 DF97
Semiconductors (the count is only for transistors) 3: OC72 OC72 OC76
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Line / Batteries (any type) / 120; 125; 160; 220 / 5 × DEAC 900D & 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: Transistor-Boy L - Grundig Radio-Vertrieb, RVF,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 260 x 190 x 90 mm / 10.2 x 7.5 x 3.5 inch
Notes .
Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Price in first year of sale 268.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1956/57 / Radiokatalog Band 1, Ernst Erb

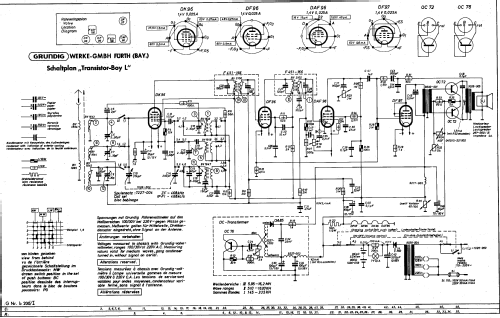

Circuit diagram reference Lange Schaltungen der Funkindustrie, Buch 4


All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke)
Here you find 6058 models, 5283 with images and 4090 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
