• Year
  • 1979
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 91428
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

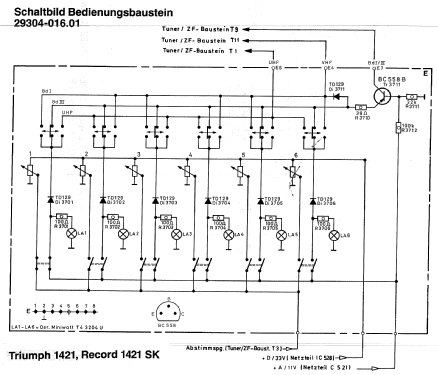

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Number of Transistors
  • 11
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 38900 kHz
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Line / Storage batteries (perhaps also batteries) / 220; 12 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 1 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Triumph 1421 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 400 x 300 x 250 mm / 15.7 x 11.8 x 9.8 inch
  • Notes
  • Der Triumph 1421 empfängt VHF und UHF nach CCIR und hat einen sechsteiligen Programmspeicher. Die Umschaltung erfolgt durch einen mechanischen Tastensatz.
  • Net weight (2.2 lb = 1 kg)
  • 7.3 kg / 16 lb 1.3 oz (16.079 lb)
  • Source of data
  • - - Data from my own collection
  • Author
  • Model page created by a member from D. See "Data change" for further contributors.
