- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1976/1977
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 160512
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

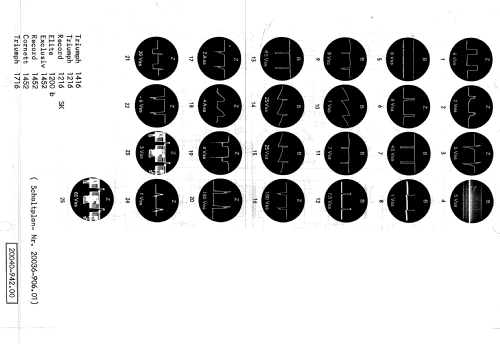

Bild aus Servicedoku.

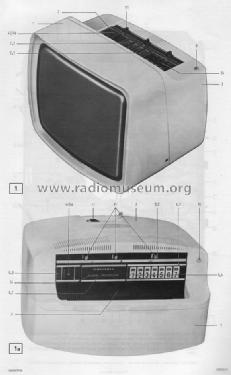

Bild aus Servicedoku.

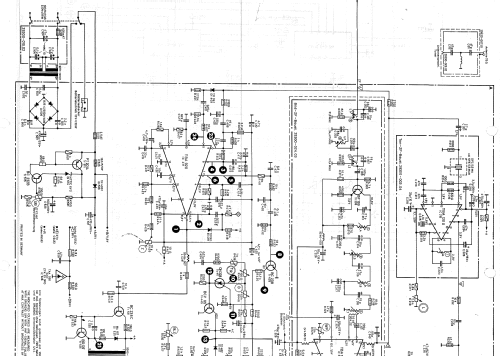

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- A44-280W
- Number of Transistors
- 17
- Semiconductors
- AF279 AF280 AF106 AF109 BF109 BF457 BC238 BD135 BD136 BC238 BCY85 BC238 BD137 PT2014 BC232 BC238 BD237 TBA120U TBA1440 TBA820 SN76001 TD041 BA157 ON328 BB105 TD129 BA243 B25C2200
- Main principle
- Superhet with RF-stage; ZF/IF 38900 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Line / Batteries (any type) / 220 / 12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Triumph 1716 - Grundig Radio-Vertrieb, RVF,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 430 x 360 x 320 mm / 16.9 x 14.2 x 12.6 inch
- Notes
-
Der 44 cm (17") s/w Fernseh-Empfänger Triumph 1716 hat 7 Speicherplätze, die mittels Sensortasten geschaltet werden. Der Empfangsbereich umfasst VHF und UHF nach CCIR. Anschluss für Kopfhörer, dabei wird der eingebaute Lautsprecher abgeschaltet.
Gehäuse in weiß, rot und gelb.
Jeder Diodentyp ist einmal gelistet.
- Net weight (2.2 lb = 1 kg)
- 14 kg / 30 lb 13.4 oz (30.837 lb)
- Literature/Schematics (1)
- Handbuch RFP 1976/77 S.62 (Thiele)
- Literature/Schematics (2)
- -- Original-techn. papers. (Original Grundig Circuit Diagram)
- Author
- Model page created by Wolfgang MICHAEL. See "Data change" for further contributors.
- Other Models
-
Here you find 6263 models, 5513 with images and 4264 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
