• Year
  • 1985
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 132785
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 11
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Power type and voltage
  • Powered by external power supply or a main unit. / 18 AC Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org

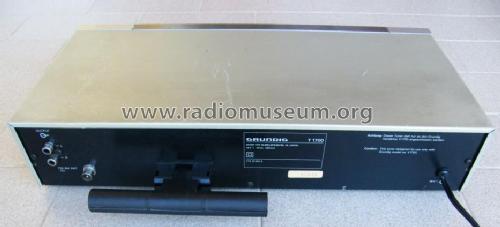

  • Model: Tuner T 1700 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Book-shelf unit.
  • Notes
  • 3 IC; 18 Volt Wechselstomspeisung aus Verstärker V 1700.
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Josef Pilz. See "Data change" for further contributors.
