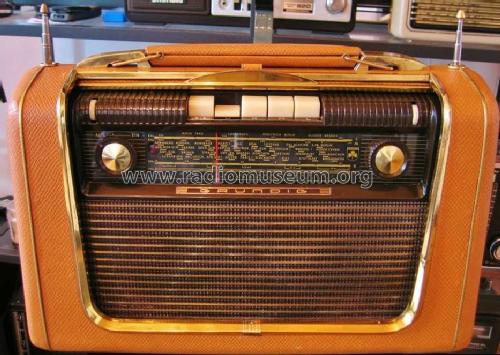

Grundig Radio-: UKW-Concert-Boy 56 [Radio] ID = 344315 933x660
Select picture or schematic to display from thumbnails on the right and click for download.
For model UKW-Concert-Boy 56, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: DC96 DF96 DK96 DF96 DF96 DF96 DAF96 DL96 EL42
Semiconductors (the count is only for transistors) RL232 or. OA172 RL232 or. OA172 E14C350 B250C30
Main principle Superheterodyne (common); ZF/IF 468/10700 kHz
Tuned circuits 8 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 110-220 / DEAC3,5 & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.15 W (unknown quality)
from Radiomuseum.org Model: UKW-Concert-Boy 56 - Grundig Radio-Vertrieb, RVF,
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 400 x 250 x 160 mm / 15.7 x 9.8 x 6.3 inch
Notes
Net weight (2.2 lb = 1 kg) 6.2 kg / 13 lb 10.5 oz (13.656 lb)
Price in first year of sale 358.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1956/57 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange Schaltungen der Funkindustrie, Buch 4
Mentioned in - - Manufacturers Literature (Katalog Reise-Empfänger 1956)
Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke)
