• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1954 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 101261

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• E80F EAA91 150C2

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

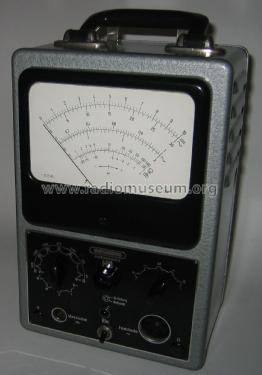

• Model: Universal-Röhrenvoltmeter Typ 159 [E80F] - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 200 x 285 x 135 mm / 7.9 x 11.2 x 5.3 inch

• Notes
• Das Modell ist in Zusammenarbeit mit Firma Hartmann & Braun entstanden.

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Price in first year of sale
• 515.00 DM

• External source of data
• Bedienungsanleitung

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Gerhard Eisenbarth. See "Data change" for further contributors.
