V-5000 (GB, U)

V-5000 ; Grundig Radio- (ID = 501062) Ampl/Mixer

V-5000 ; Grundig Radio- (ID = 501063) Ampl/Mixer

V-5000 ; Grundig Radio- (ID = 501064) Ampl/Mixer

V-5000 ; Grundig Radio- (ID = 501065) Ampl/Mixer

V-5000 ; Grundig Radio- (ID = 501066) Ampl/Mixer

V-5000 ; Grundig Radio- (ID = 501067) Ampl/Mixer

V-5000 ; Grundig Radio- (ID = 501068) Ampl/Mixer

V-5000 ; Grundig Radio- (ID = 1041997) Ampl/Mixer
V-5000 ; Grundig Radio- (ID = 371429) Ampl/Mixer V-5000 ; Grundig Radio- (ID = 516405) Ampl/Mixer
V-5000 ; Grundig Radio- (ID = 371430) Ampl/Mixer V-5000 ; Grundig Radio- (ID = 516397) Ampl/Mixer
V-5000 ; Grundig Radio- (ID = 516398) Ampl/Mixer V-5000 ; Grundig Radio- (ID = 516399) Ampl/Mixer
V-5000 ; Grundig Radio- (ID = 516402) Ampl/Mixer V-5000 ; Grundig Radio- (ID = 516404) Ampl/Mixer
V-5000 ; Grundig Radio- (ID = 516406) Ampl/Mixer V-5000 ; Grundig Radio- (ID = 516407) Ampl/Mixer
Use red slider bar for more.
V-5000 ; Grundig Radio- (ID = 371429) Ampl/Mixer
Grundig Radio-: V-5000 [Ampl/Mixer] ID = 371429 900x521
Select picture or schematic to display from thumbnails on the right and click for download.
For model V-5000 (GB, U), Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1980 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 200 W (300 W max.)
from Radiomuseum.org Model: V-5000 - Grundig Radio-Vertrieb, RVF,
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 450 x 115 x 385 mm / 17.7 x 4.5 x 15.2 inch
Notes

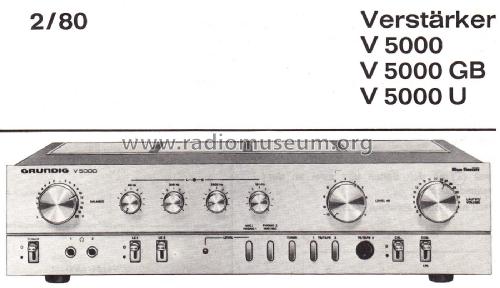

Grundig Verstärker V5000 in 3 Ausführungen: V5000, V5000GB und V5000U.

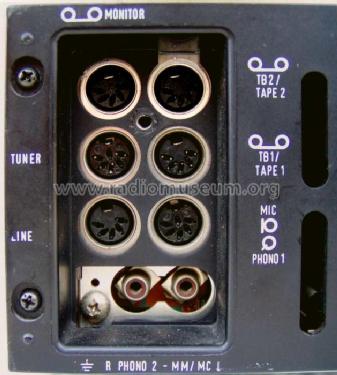

Vier LS-Buchsen; Eingänge: Monitor, Tuner, 2× Tape, 2× Phono und Mikrofon.

Vollverstärker mit 2x 100/150 Watt Sinus/Musik Ausgangsleistung
Schaltuhr-Betrieb in Verbindung mit T5000 möglich

Net weight (2.2 lb = 1 kg) 13.4 kg / 29 lb 8.2 oz (29.515 lb)
Collectors' prices
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Peter Böhm. See "Data change" for further contributors.
