- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Year
- 1993 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 181530
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

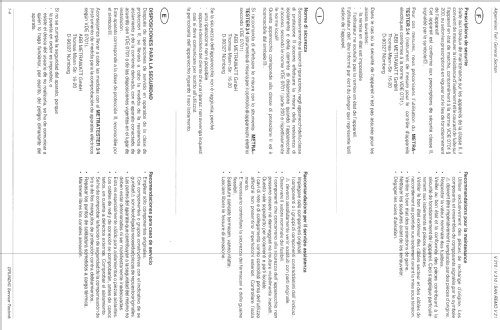

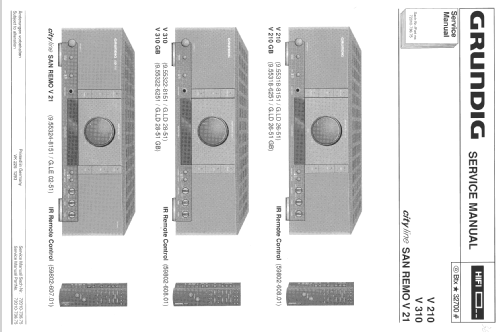

Bild aus Grundig Service Unterlagen
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 200 W (unknown quality)
- Material
- Various materials
- from Radiomuseum.org
- Model: V 210 - Grundig Radio-Vertrieb, RVF,
- Shape
- Book-shelf unit.
- Notes
- NF Stereo Verstärker mit 2x100 Watt Musikleistung an 4 Ohm, Lautsprecherimpedanz 4-16 Ohm, Übertragungsbereich 5 Hz - 100000 Hz.
- Literature/Schematics (1)
- Original Grundig Service Unterlagen
- Author
- Model page created by Josef Pilz. See "Data change" for further contributors.
