Verdi 5S Audioprisma Ch= RC500

Verdi 5S Audioprisma Ch= RC500; Grundig Radio- (ID = 824822) Radio Verdi 5S Audioprisma Ch= RC500; Grundig Radio- (ID = 824824) Radio

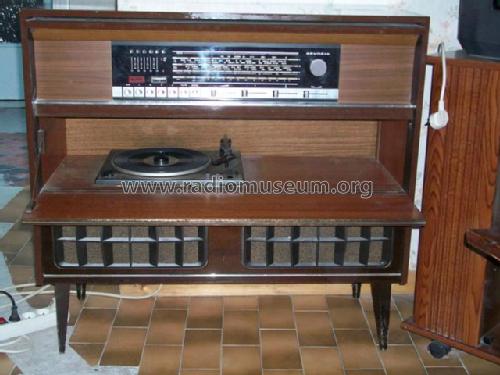

Verdi 5S Audioprisma Ch= RC500; Grundig Radio- (ID = 39767) Radio Verdi 5S Audioprisma Ch= RC500; Grundig Radio- (ID = 824823) Radio
Use red slider bar for more.

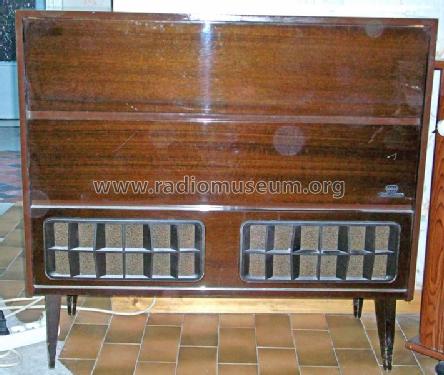

Verdi 5S Audioprisma Ch= RC500; Grundig Radio- (ID = 824822) Radio
Grundig Radio-: Verdi 5S Audioprisma Ch= RC500 [Radio] ID = 824822 711x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Verdi 5S Audioprisma Ch= RC500, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1973/1974 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 25:
Main principle Superheterodyne (common)
Tuned circuits 7 AM circuit(s)     13 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 130; 220; 240 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Verdi 5S Audioprisma Ch= RC500 - Grundig Radio-Vertrieb, RVF,
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 880 x 730 x 360 mm / 34.6 x 28.7 x 14.2 inch
Notes Rundfunk-Chassis = RC500, Stereo-NF-Verstärker mit 2 Endstufen je 10 W;
Phono-Chassis = Automatic 60 mit Kristallsystem.
2 Doppel-Lautsprechersysteme 28,3 x 17,3 cm und 5,6 cm Ø je Kanal; Schaltbuchsen für Stereo-Zusatzlautsprecher.
Net weight (2.2 lb = 1 kg) 44 kg / 96 lb 14.7 oz (96.916 lb)
External source of data Erb
Source of data Katalog RFP 1973
Mentioned in Handbuch VDRG 1973/1974
