• Year
  • 1987 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 182136
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 240 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org

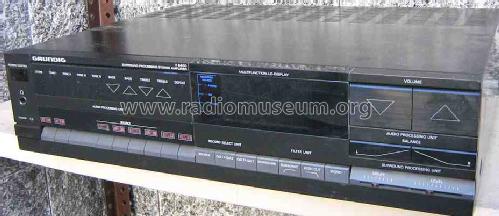

  • Model: Verstärker V-8400 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 435 x 115 x 345 mm / 17.1 x 4.5 x 13.6 inch
  • Notes
  • Grundig NF-Verstärker mit 2x 120 Watt Musikleistung an 8 Ohm; Surround-Verstärker hinten 160 Watt an 8 Ohm, Leistungsbandbreite 5 Hz bis 80 kHz.
    Sechs LS-Außgänge, drei AC-Outlet Switched. Total 100 W, sechs Eingangsbuchsen Phono/CD/Tuner/TV/Tape 1+2, Multifunction-LC-Display, Surround-Processing Unit. Endstufen Hybrid 4 x STK4040X.
  • Net weight (2.2 lb = 1 kg)
  • 9.5 kg / 20 lb 14.8 oz (20.925 lb)
  • Literature/Schematics (1)
  • Original Grundig Service Unterlagen
  • Author
  • Model page created by Josef Pilz. See "Data change" for further contributors.
