Weltklang 2000a

Weltklang 2000a; Grundig Radio- (ID = 1730565) Car Radio

Weltklang 2000a; Grundig Radio- (ID = 1730566) Car Radio

Weltklang 2000a; Grundig Radio- (ID = 1730567) Car Radio

Weltklang 2000a; Grundig Radio- (ID = 1730570) Car Radio

Weltklang 2000a; Grundig Radio- (ID = 1730572) Car Radio

Weltklang 2000a; Grundig Radio- (ID = 1730573) Car Radio

Weltklang 2000a; Grundig Radio- (ID = 1730574) Car Radio

Weltklang 2000a; Grundig Radio- (ID = 1730575) Car Radio
Weltklang 2000a; Grundig Radio- (ID = 1726481) Car Radio Weltklang 2000a; Grundig Radio- (ID = 1726482) Car Radio

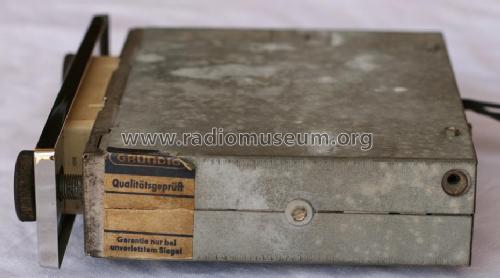

Weltklang 2000a; Grundig Radio- (ID = 1726483) Car Radio Weltklang 2000a; Grundig Radio- (ID = 1726484) Car Radio

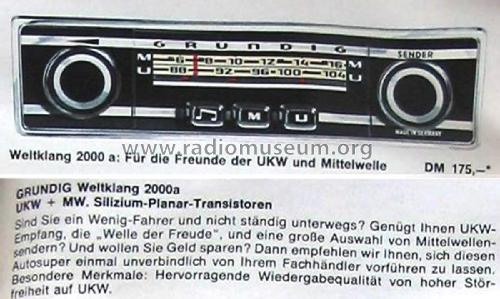

Weltklang 2000a; Grundig Radio- (ID = 2480972) Car Radio Weltklang 2000a; Grundig Radio- (ID = 36923) Car Radio
Weltklang 2000a; Grundig Radio- (ID = 2558151) Car Radio
Use red slider bar for more.
Weltklang 2000a; Grundig Radio- (ID = 1726481) Car Radio
Grundig Radio-: Weltklang 2000a [Car Radio] ID = 1726481 930x457
Select picture or schematic to display from thumbnails on the right and click for download.
For model Weltklang 2000a, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1969–1971 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 9: BF185 BF185 BF185 BF184 BF184 BF184 BC108 AD162 AD162
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 8 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Weltklang 2000a - Grundig Radio-Vertrieb, RVF,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 170 x 40 x 160 mm / 6.7 x 1.6 x 6.3 inch
Notes Dioden: 2× AA116, St0.5, 2.1St1, SIS02, 3390.
Net weight (2.2 lb = 1 kg) 1.2 kg / 2 lb 10.3 oz (2.643 lb)
Price in first year of sale 165.00 DM
External source of data erb
Source of data Handbuch VDRG 1969/1970
Mentioned in Handbuch VDRG 1970/1971
