Weltklang WK 2001

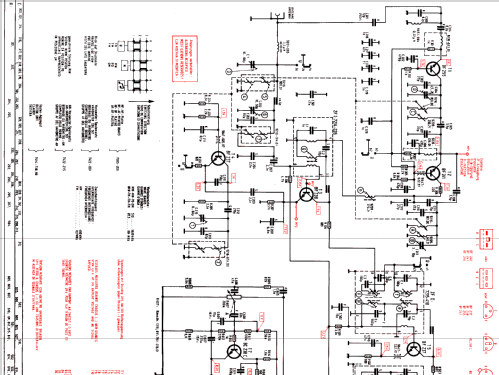

Weltklang WK 2001; Grundig Radio- (ID = 349946) Car Radio

Weltklang WK 2001; Grundig Radio- (ID = 349947) Car Radio

Weltklang WK 2001; Grundig Radio- (ID = 349948) Car Radio

Weltklang WK 2001; Grundig Radio- (ID = 349949) Car Radio

Weltklang WK 2001; Grundig Radio- (ID = 349950) Car Radio

Weltklang WK 2001; Grundig Radio- (ID = 349951) Car Radio
Weltklang WK 2001; Grundig Radio- (ID = 2384108) Car Radio Weltklang WK 2001; Grundig Radio- (ID = 2309781) Car Radio
Weltklang WK 2001; Grundig Radio- (ID = 2309783) Car Radio Weltklang WK 2001; Grundig Radio- (ID = 2309782) Car Radio
Weltklang WK 2001; Grundig Radio- (ID = 2309786) Car Radio Weltklang WK 2001; Grundig Radio- (ID = 2309780) Car Radio
Weltklang WK 2001; Grundig Radio- (ID = 2309785) Car Radio Weltklang WK 2001; Grundig Radio- (ID = 2309787) Car Radio
Weltklang WK 2001; Grundig Radio- (ID = 1239511) Car Radio Weltklang WK 2001; Grundig Radio- (ID = 36953) Car Radio
Use red slider bar for more.
Weltklang WK 2001; Grundig Radio- (ID = 2384108) Car Radio
Grundig Radio-: Weltklang WK 2001 [Car Radio] ID = 2384108 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Weltklang WK 2001, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1971–1974 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 10:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Weltklang WK 2001 - Grundig Radio-Vertrieb, RVF,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 175 x 42 x 133 mm / 6.9 x 1.7 x 5.2 inch
Notes 5 Dioden.
Net weight (2.2 lb = 1 kg) 1.2 kg / 2 lb 10.3 oz (2.643 lb)
Price in first year of sale 180.00 DM
External source of data Erb
Source of data Handbuch VDRG 1971/1972
