• Year
  • 1972/1973
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 28809
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

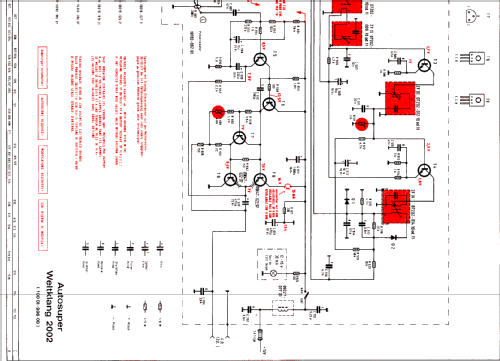

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 9
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 5 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Weltklang WK2002 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 175 x 42 x 93 mm / 6.9 x 1.7 x 3.7 inch
  • Notes
  • 1 Diode.
  • Price in first year of sale
  • 138.00 DM
  • External source of data
  • Erb
