Weltklang 2610-VD

Weltklang 2610-VD; Grundig Radio- (ID = 982838) Car Radio Weltklang 2610-VD; Grundig Radio- (ID = 982839) Car Radio
Weltklang 2610-VD; Grundig Radio- (ID = 982840) Car Radio Weltklang 2610-VD; Grundig Radio- (ID = 982841) Car Radio
Weltklang 2610-VD; Grundig Radio- (ID = 1405398) Car Radio Weltklang 2610-VD; Grundig Radio- (ID = 1405399) Car Radio
Weltklang 2610-VD; Grundig Radio- (ID = 1405400) Car Radio Weltklang 2610-VD; Grundig Radio- (ID = 1405401) Car Radio
Weltklang 2610-VD; Grundig Radio- (ID = 1405402) Car Radio Weltklang 2610-VD; Grundig Radio- (ID = 1405403) Car Radio
Use red slider bar for more.

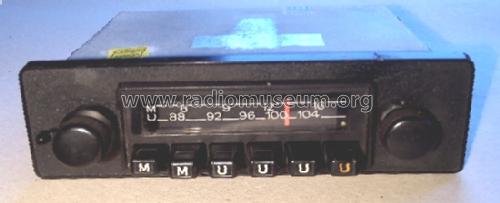

Weltklang 2610-VD; Grundig Radio- (ID = 982838) Car Radio
Grundig Radio-: Weltklang 2610-VD [Car Radio] ID = 982838 933x345
Select picture or schematic to display from thumbnails on the right and click for download.
For model Weltklang 2610-VD, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1980 ? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Weltklang 2610-VD - Grundig Radio-Vertrieb, RVF,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 179 x 44 x 110 mm / 7 x 1.7 x 4.3 inch
Notes 2 MW, 4 UKW Stationstasten, davon 1x UKW mit Verkehrsfunk, Tasten mit Senderspeicher, Klangregler vorhanden, DIN Anschluß für externes Gerät wie zum Beispiel Tonbandgerät vorhanden, Anschluß für Automatikantenne vorhanden, 2 Lautsprecheranschlüsse.
Net weight (2.2 lb = 1 kg) 0.930 kg / 2 lb 0.8 oz (2.048 lb)

Model page created by Christian Hubatsch. See "Data change" for further contributors.
