Dublette ID = 27776

Dublette ID = 27776; Grundig Radio- (ID = 924761) Car Radio

Dublette ID = 27776; Grundig Radio- (ID = 924762) Car Radio

Dublette ID = 27776; Grundig Radio- (ID = 924763) Car Radio

Dublette ID = 27776; Grundig Radio- (ID = 924764) Car Radio

Dublette ID = 27776; Grundig Radio- (ID = 924765) Car Radio
Dublette ID = 27776; Grundig Radio- (ID = 36928) Car Radio
Use red slider bar for more.
Dublette ID = 27776; Grundig Radio- (ID = 36928) Car Radio
Grundig Radio-: Dublette ID = 27776 [Car Radio] ID = 36928 933x317

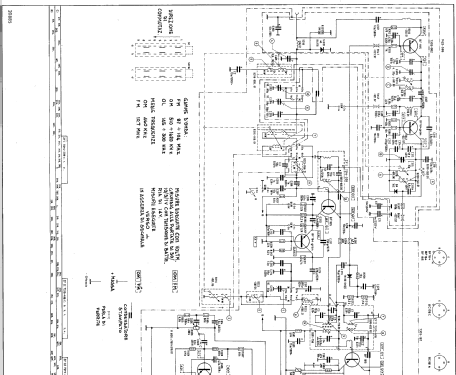

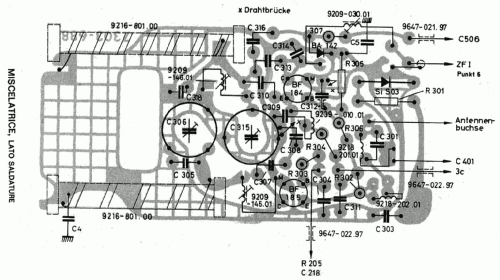

Select picture or schematic to display from thumbnails on the right and click for download.
For model Dublette ID = 27776, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 9999/9999 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 10:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Dublette ID = 27776 - Grundig Radio-Vertrieb, RVF,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 180 x 40 x 150 mm / 7.1 x 1.6 x 5.9 inch
Notes 10 Dioden.
Net weight (2.2 lb = 1 kg) 1.1 kg / 2 lb 6.8 oz (2.423 lb)
Price in first year of sale 193.00 DM
External source of data Erb
Source of data Handbuch VDRG 1970/1971
