Weltklang 3010a

Weltklang 3010a; Grundig Radio- (ID = 915077) Car Radio

Weltklang 3010a; Grundig Radio- (ID = 915078) Car Radio

Weltklang 3010a; Grundig Radio- (ID = 915079) Car Radio

Weltklang 3010a; Grundig Radio- (ID = 1559310) Car Radio

Weltklang 3010a; Grundig Radio- (ID = 1559311) Car Radio
Weltklang 3010a; Grundig Radio- (ID = 2410660) Car Radio Weltklang 3010a; Grundig Radio- (ID = 36925) Car Radio
Weltklang 3010a; Grundig Radio- (ID = 1790540) Car Radio Weltklang 3010a; Grundig Radio- (ID = 1790541) Car Radio
Use red slider bar for more.

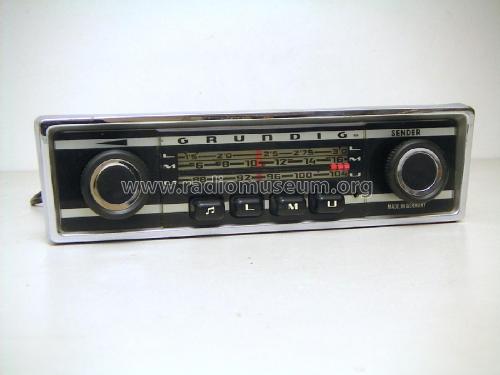

Weltklang 3010a; Grundig Radio- (ID = 2410660) Car Radio
Grundig Radio-: Weltklang 3010a [Car Radio] ID = 2410660 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Weltklang 3010a, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1969/1970 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 10: BF185 BF185 BF185 BF184 BF184 BF184 BC108 BC181 AD161 AD162
Main principle Super-Heterodyne (Super in general); ZF/IF 460 kHz
Tuned circuits 8 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Weltklang 3010a - Grundig Radio-Vertrieb, RVF,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 180 x 40 x 130 mm / 7.1 x 1.6 x 5.1 inch
Notes Dioden: 2× AA112, 2× 1N60, BA142, SiS03, 9476, 9787, 3393.
Net weight (2.2 lb = 1 kg) 1.1 kg / 2 lb 6.8 oz (2.423 lb)
Price in first year of sale 182.00 DM
Collectors' prices
External source of data erb
Source of data Handbuch VDRG 1969/1970
Mentioned in Handbuch VDRG 1970/1971
Literature/Schematics (1) -- Original-techn. papers.
