Weltklang 3015

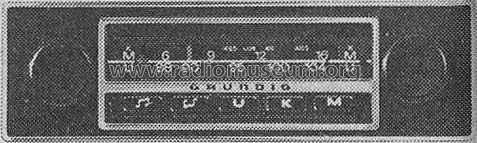

Weltklang 3015; Grundig Radio- (ID = 2410683) Car Radio Weltklang 3015; Grundig Radio- (ID = 705641) Car Radio
Use red slider bar for more.

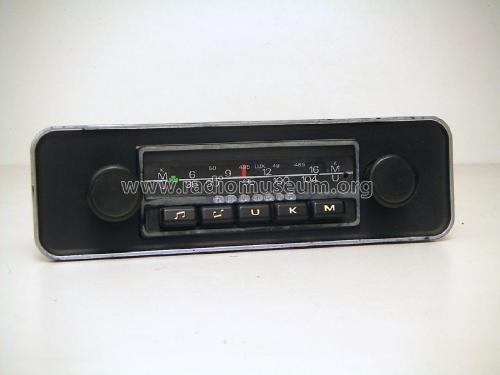

Weltklang 3015; Grundig Radio- (ID = 2410683) Car Radio
Grundig Radio-: Weltklang 3015 [Car Radio] ID = 2410683 1400x1050

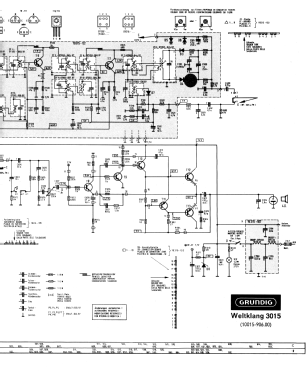

Select picture or schematic to display from thumbnails on the right and click for download.
For model Weltklang 3015, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1974/1975 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 13:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Weltklang 3015 - Grundig Radio-Vertrieb, RVF,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 175 x 42 x 97 mm / 6.9 x 1.7 x 3.8 inch
Notes 7 Dioden.
Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)
External source of data Erb
Source of data Katalog RFP 1974
