Weltklang 4000

Weltklang 4000; Grundig Radio- (ID = 212881) Car Radio

Weltklang 4000; Grundig Radio- (ID = 212882) Car Radio

Weltklang 4000; Grundig Radio- (ID = 212883) Car Radio

Weltklang 4000; Grundig Radio- (ID = 212884) Car Radio

Weltklang 4000; Grundig Radio- (ID = 1650408) Car Radio

Weltklang 4000; Grundig Radio- (ID = 1650405) Car Radio

Weltklang 4000; Grundig Radio- (ID = 1650406) Car Radio

Weltklang 4000; Grundig Radio- (ID = 1650407) Car Radio
Weltklang 4000; Grundig Radio- (ID = 2410677) Car Radio Weltklang 4000; Grundig Radio- (ID = 98790) Car Radio
Weltklang 4000; Grundig Radio- (ID = 1661210) Car Radio Weltklang 4000; Grundig Radio- (ID = 741393) Car Radio
Weltklang 4000; Grundig Radio- (ID = 1661208) Car Radio Weltklang 4000; Grundig Radio- (ID = 1661209) Car Radio
Weltklang 4000; Grundig Radio- (ID = 1661211) Car Radio Weltklang 4000; Grundig Radio- (ID = 1661212) Car Radio
Weltklang 4000; Grundig Radio- (ID = 1661213) Car Radio Weltklang 4000; Grundig Radio- (ID = 1661214) Car Radio
Use red slider bar for more.

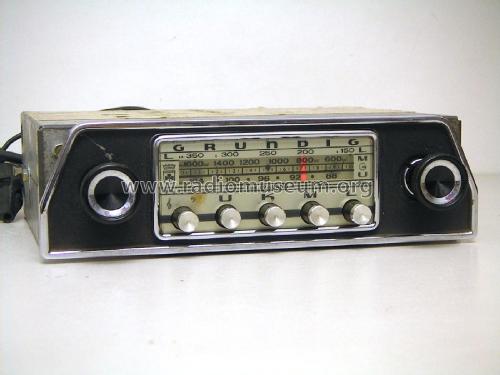

Weltklang 4000; Grundig Radio- (ID = 2410677) Car Radio
Grundig Radio-: Weltklang 4000 [Car Radio] ID = 2410677 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Weltklang 4000, Grundig (Radio-Vertrieb, RVF, Radiowerke)

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1967–1969 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 11: AF106 AF106 AF185 AF185 AF185 AF121 AF126 BC108 BC108 AD162 AD162 AA116 1N60 BA102
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Weltklang 4000 - Grundig Radio-Vertrieb, RVF,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 180 x 50 x 160 mm / 7.1 x 2 x 6.3 inch
Notes Grundig Weltklang 4000;
Nur Handabstimmung, Klangtaste.
Net weight (2.2 lb = 1 kg) 1.4 kg / 3 lb 1.3 oz (3.084 lb)
Price in first year of sale 228.00 DM
External source of data erb
Source of data Handbuch VDRG 1967/1968
Mentioned in -- Original prospect or advert (Grundig Katalog 1967 - Schaufenster - Seite 31)

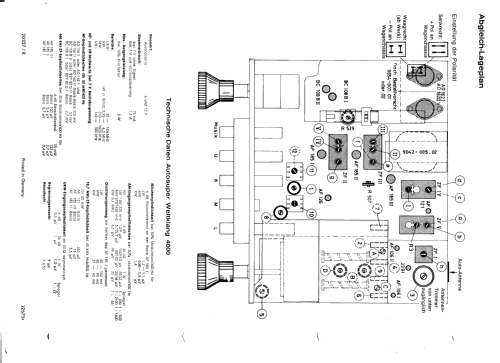

Literature/Schematics (1) -- Original-techn. papers.
