Weltklang WK 4501

Weltklang WK 4501; Grundig Radio- (ID = 349939) Car Radio

Weltklang WK 4501; Grundig Radio- (ID = 349940) Car Radio

Weltklang WK 4501; Grundig Radio- (ID = 349941) Car Radio

Weltklang WK 4501; Grundig Radio- (ID = 349942) Car Radio

Weltklang WK 4501; Grundig Radio- (ID = 349943) Car Radio

Weltklang WK 4501; Grundig Radio- (ID = 349944) Car Radio

Weltklang WK 4501; Grundig Radio- (ID = 761308) Car Radio
Weltklang WK 4501; Grundig Radio- (ID = 1107651) Car Radio Weltklang WK 4501; Grundig Radio- (ID = 641470) Car Radio
Weltklang WK 4501; Grundig Radio- (ID = 36929) Car Radio Weltklang WK 4501; Grundig Radio- (ID = 1763197) Car Radio
Weltklang WK 4501; Grundig Radio- (ID = 2382242) Car Radio Weltklang WK 4501; Grundig Radio- (ID = 2382243) Car Radio
Weltklang WK 4501; Grundig Radio- (ID = 2382244) Car Radio Weltklang WK 4501; Grundig Radio- (ID = 2480950) Car Radio
Weltklang WK 4501; Grundig Radio- (ID = 2557671) Car Radio
Use red slider bar for more.

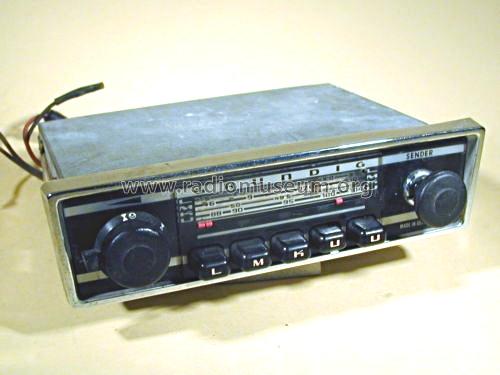

Weltklang WK 4501; Grundig Radio- (ID = 1107651) Car Radio
Grundig Radio-: Weltklang WK 4501 [Car Radio] ID = 1107651 500x375
Select picture or schematic to display from thumbnails on the right and click for download.
For model Weltklang WK 4501, Grundig (Radio-Vertrieb, RVF, Radiowerke):
(c) eBay-Verkäufer - bora11 - 27. Nov. 2011 - 350507751691

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1969–1972 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 13: BF185 BF184 BF237 BF237 BF237 BF237 BF238 BF238 BC108 BC108 BC231 AD161 AD162
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Weltklang WK 4501 - Grundig Radio-Vertrieb, RVF,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 180 x 40 x 130 mm / 7.1 x 1.6 x 5.1 inch
Notes

9 oder 10 Dioden (ab 1970). Preis ab 1970: 279,00 DM

Net weight (2.2 lb = 1 kg) 2.2 kg / 4 lb 13.5 oz (4.846 lb)
Price in first year of sale 265.00 DM
External source of data erb
Source of data Handbuch VDRG 1969/1970
Mentioned in Handbuch VDRG 1970/1971 (und 1971/72)
Literature/Schematics (1) -- Original-techn. papers.
