Weltklang Statomat WK4805

Weltklang Statomat WK4805; Grundig Radio- (ID = 902584) Car Radio

Weltklang Statomat WK4805; Grundig Radio- (ID = 902585) Car Radio
Weltklang Statomat WK4805; Grundig Radio- (ID = 78336) Car Radio Weltklang Statomat WK4805; Grundig Radio- (ID = 78337) Car Radio
Weltklang Statomat WK4805; Grundig Radio- (ID = 78338) Car Radio Weltklang Statomat WK4805; Grundig Radio- (ID = 2396367) Car Radio
Weltklang Statomat WK4805; Grundig Radio- (ID = 2396368) Car Radio
Use red slider bar for more.
Weltklang Statomat WK4805; Grundig Radio- (ID = 78336) Car Radio
Grundig Radio-: Weltklang Statomat WK4805 [Car Radio] ID = 78336 640x321
Select picture or schematic to display from thumbnails on the right and click for download.
For model Weltklang Statomat WK4805, Grundig (Radio-Vertrieb, RVF, Radiowerke):
Grundig Weltklang WK 4805

Country:  Germany
Manufacturer / Brand:  Grundig (Radio-Vertrieb, RVF, Radiowerke)
alternative name

Grundig Portugal || Grundig USA / Lextronix
Year: 1974/1975 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 26: AF306 BF441 or. BF451 BF440 or. BF450 BC309 BC238 BC338 GC269 BC328 GD151 GD152 GD183
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Weltklang Statomat WK4805 - Grundig Radio-Vertrieb, RVF,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 175 x 42 x 133 mm / 6.9 x 1.7 x 5.2 inch
Notes

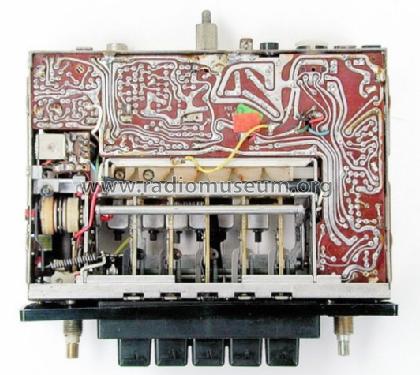

Das Autoradio Grundig Weltklang WK4805 hat einen motorischen Sendersuchlauf mit 2 Empfindlichkeitsstufen. Laufrichtungsumschaltung des Motors durch Endkontakte und Transistorelektronik. 5 mechanische Stationstasten. "Statomat"-Taste für Suchlauf. Anschluss für Suchlauf-Fernbedienung (z.B. Fuss-Schalter).

Jeder Transistortyp nur einmal gelistet.

Vorgänger mit relaisgesteuerter Laufrichtungsumschaltung: Weltklang Statomat WK4800.

Net weight (2.2 lb = 1 kg) 1.1 kg / 2 lb 6.8 oz (2.423 lb)
Price in first year of sale 455.00 DM
External source of data Erb
Source of data Katalog RFP 1974
Mentioned in Funk-Technik (FT) (9/76 Seite287)
