• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1948/1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 1834

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH5 UCH5 UBL3 UY3

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110; 125; 150; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch

• Material
• Wooden case

• from Radiomuseum.org

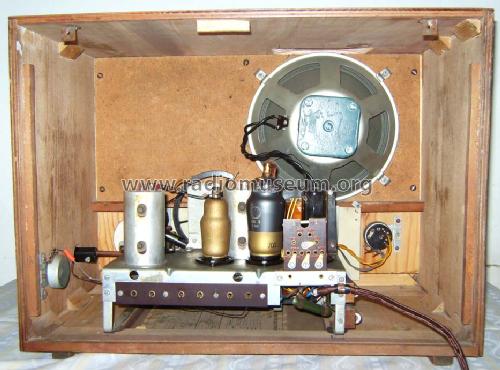

• Model: Weltklang-Super GW - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 480 x 390 x 290 mm / 18.9 x 15.4 x 11.4 inch

• Notes
• div.Gehäuse [572]

• Net weight (2.2 lb = 1 kg)
• 10.1 kg / 22 lb 3.9 oz (22.247 lb)

• Price in first year of sale
• 475.00 DM

• Source of data
• Kat.Grosshd.Ges. 1948 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange-Nowisch

• Mentioned in
• Funkschau (4808)
